| MOQ: | 1 세트 |
| 가격: | 2000--10000 USD/set |
| standard packaging: | 요구사항에 따라 |
| Delivery period: | 5--30 근무일 |
| Supply Capacity: | 1개월당 10세트 |
Performance and features:

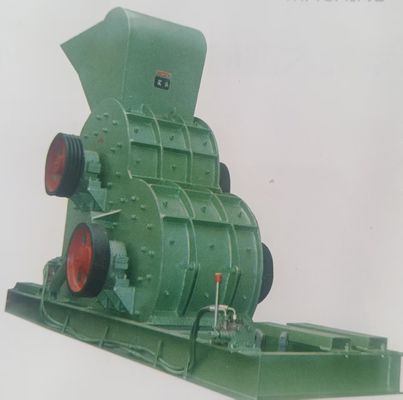

1. This series of crushers uses a two-stage continuous crushing process with dual rotors, without a screening device, and has no requirements for moisture content. The output is also not affected by moisture, and there is no bonding or blockage phenomenon. Controlling the size of the material only requires adjusting the gap between the crusher hammer heads,
2. Alloy wear-resistant hammer head, combined with hammer handle, only requires replacement of hammer head.
3. Unique displacement gap adjustment technology, the hammer head does not need to be repaired or replaced immediately when worn, and can be used immediately by adjusting its position.
4. The crusher can rotate in both directions, and through regular forward and reverse operation, it can evenly wear between the hammer head and the crushing plate, reducing the frequency of stopping and replacing vulnerable parts.
5. The discharge particle size is uniform, the crushing ratio is high, the output is high, and the energy consumption is low.
6. Suitable for fine crushing of brittle materials, non clogging, low dust, and low noise.
7. Easy installation and quick maintenance.
8. By configuring hydraulic auxiliary mechanisms, one person can complete tasks such as operation, maintenance, and component replacement.
Technical parameters:
| Model | 2PCX 400X600 | 2PCX 600X600 |
2PCX 600X800 |
2PCX 800X1000 | 2PCX 1000X1000 |
| Inlet granularity | ≤100mm | ≤120mm | ≤150mm | ≤200mm | ≤200mm |
| Outlet granularity | ≤3mm(95%) | ≤3mm(95%) |
≤3mm (90%) |
≤3mm(90%) |
≤3mm (90%) |
| Capacity t/h | 15--25 | 25--40 | 45--65 | 80--100 | 100--120 |
| Moisture | ≤30% | ≤30% | ≤30% | ≤30% | ≤30% |
| Power Kw | 22+22 | 45+45 | 75+75 | 90+90 | 110+110 |
|
|
